How to fix the Gradient on this ReactJS component?

Question

I am trying to adjust the styling of a linear gradient I made. I have attached a picture of it. I want to make the white middle section bigger so when there are the 3 sections of red white red, then are all evenly sized. Whenever I try to adjust the "y" values in "start" and "end" all it does is change shade of my component and not the actual gradient itself.

import React from 'react';
import { Text, StyleSheet } from 'react-native';
import { LinearGradient } from 'expo-linear-gradient';
const ZoneRideCard = ({zoneCardColor}) => {
  return (
    <LinearGradient
      colors={[zoneCardColor, '#FFFFFF', zoneCardColor ]}
      start={{ x: 0, y: -.1 }}
      end={{ x: 0, y: 1.1}}
      style={styles.container}
    >
    </LinearGradient>
  );
};

const styles = StyleSheet.create({
  container: {
    padding: 0,
    height: 140,
    width: 405,
    borderRadius: 10,
    alignItems: 'center',
    margin: 0,
    marginLeft: 25,
    marginTop: -45,
    marginBottom: 70,
  },

});

export default ZoneRideCard;

FOLLOW UP Hi, thank you so much for your response. Seems the locations property is def what I was looking for but still have some issues if you dont mind. I put the suggestions you mentioned but it is still dont coming out the way I was hoping. This is the code:

<LinearGradient
    colors={[zoneCardColor, '#FFFFFF', zoneCardColor ]}
    start={{ x: 0.5, y: 0 }}
    end={{ x: 0.5, y: 1}}
    locations={[0.33, 0.66, 0.99]}
    style={styles.container}
>

How it is coming out:

locations={[0.05, 0.5, 0.99]}

I was able to draw up in AI how I would want it to kind of look with a bigger white space in the middle, for some reason, copilot can't figure it out either. I keep trying to mess with these values but I can't seem to get that larger white section I want, but this is kind of how it should look:

Answer 1

To make the white space bigger and make all the colors evenly sized you can use following techniques:

1. Changing start and end values (distributed evenly)

start and end values must be in a range from 0 to 1, because they represent percentages of the starting point and the ending point of the gradient. For example, start={{ x: 0.1, y: 0.2 }} means that

• the gradient will start 10% from the left and
• 20% from the top

and end={{ x: 0.1, y: 0.2 }} means that

• the gradient will end 10% from the left and
• 20% from the bottom.

In your case:

Changing the start parameter to start={{ x: 0.5, y: 0 }} and end parameter to end={{ x: 0.5, y: 1}} should resolve the issue.

Explanation:

• start parameter set to start={{ x: 0.5, y: 0 }} means that the gradient should start 50% from the left and 0% from the top,
• end parameter set to end={{ x: 0.5, y: 1}} means that the gradient should end 50% from the left and 100% from the top.

This way we get a perfect vertical gradient.

---

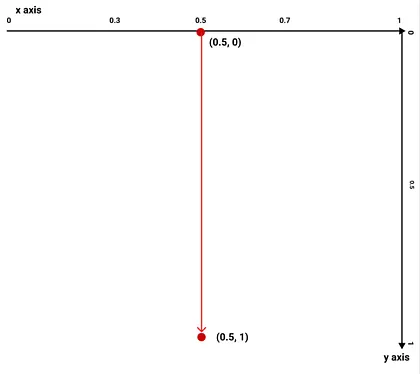

To better understand how start and end parameters work we have the graph bellow.

2. Using locations parameter to specify a color-stop location

locations parameter is

A readonly array that contains numbers ranging from 0 to 1, inclusive, and is the same length as the colors property. Each number indicates a color-stop location where each respective color should be located. If not specified, the colors will be distributed evenly across the gradient.

we can read from the LinearGradient expo documentation.

Examples:

1. locations={[0.5, 0.8]} would render:

• the first color, solid, from the beginning of the gradient view to 50% through (the middle);
• a gradient from the first color to the second from the 50% point to the 80% point; and
• the second color, solid, from the 80% point to the end of the gradient view.

2. locations={[0.4, 0.7]}

• the first color, solid, from the beginning of the gradient view to 40% through;
• a gradient from the first color to the second from the 40% point to the 70% point; and
• the second color, solid, from the 70% point to the end of the gradient view.

3. locations={[0.2, 0.6, 0.9]}

• the first color covers 0 to 20%. It's gradient stops at 20%. Note that it starts with a sharper color at the beginning.
• the second color gradient covers 20- 60%; it stops at 60%
• the third color covers 60- 90%; it's gradient stops at 90%, leaving the sharper color at the end.

In your case:

Setting the locations parameter to locations={[0.33, 0.66, 0.99]} should resolve the issue.

Explanation:

locations parameter set to locations={[0.33, 0.66, 0.99]} means that your red color will cover first 33% (1/3) of the gradient, then white will cover next 33% (from 33% to 66%) of the gradient and another red will cover another 33% from (66% to 99%).

Edit:

I recreated your code and the closest I could get was this:

I used this code:

<View style={styles.container}>
      <LinearGradient
        colors={['#E57373', '#FFFFFF', '#FFFFFF', '#E57373']}
        locations={[0, 0.3, 0.7, 1]}
        start={{ x: 0.5, y: 0 }}
        end={{ x: 0.5, y: 1 }}
        style={styles.gradient}
      />
</View>

const styles = StyleSheet.create({
  container: {
    flex: 1,
    justifyContent: 'center',
    alignItems: 'center',
    backgroundColor: '#fff',
  },
  gradient: {
    width: 300,
    height: 100,
    borderRadius: 20,
  },
});

Answer 2

For LinearGradient, start and end control where, within the parent, the gradient is applied to:

From the docs:

For example, end = { x: 0.1, y: 0.2 } means that the gradient will end 10% from the left and 20% from the bottom.

What you want to adjust is the locations prop:

For example, [0.5, 0.8] would render:

• the first color, solid, from the beginning of the gradient view to 50% through (the middle);
• a gradient from the first color to the second from the 50% point to the 80% point; and
• the second color, solid, from the 80% point to the end of the gradient view.
